SEG-24 Integrated Electric Gripper

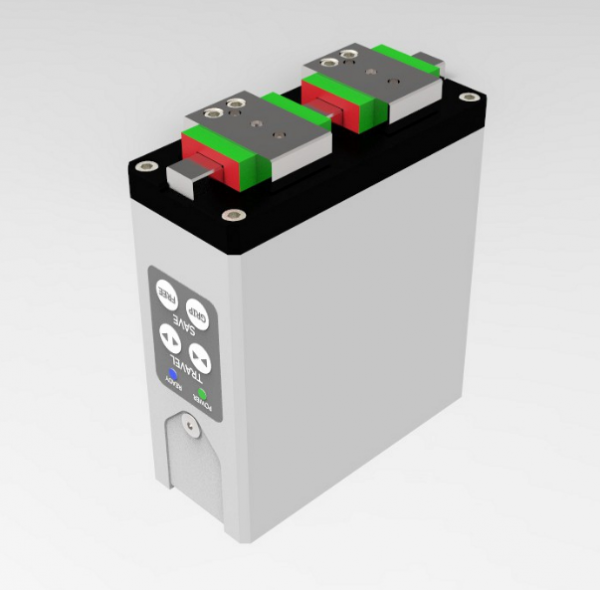

 S Series SEG-24 Integrated Electric Gripper


Integrated control
  • Controller is embedded inside gripper eliminating the need for additional mounting and can be used ditectly with I/O control.
  • Parameters can be set without computer, eliminating the need to edit program.
  • LED lights for Power and Ready, clearly show gripper status.
  • Compact body design; small size, light weight.
Easy operation
  • Only one set of I/O signals to control gripper on/off.
  • Built-in Busy signal for immediate feedback gripper status.
Key design
  • SEG-24 has function keys that allow user to quickly adjust gripper travel and store clamping point.
High speed clamping
  • SEG-04 switching cycle time is 0.11 seconds, suitable for 3C industry high-speed pick and place operations.
  • SEG-24 Clamp has smart pick and place function, set to function keys that store clamping point. It can move to clamping point at high-speed and automatically convert to slow clamping, effectively reduce cycle time and increase efficiency.
